Specimen 08 · Residential Cooling Systems
Every cooling complaint is a measurement problem until proven otherwise. We document airflow, static pressure, superheat, subcooling and refrigerant charge before recommending a single part — so the fix matches the fault instead of the guess.
01 Cooling Diagnostics
A compressor is the last thing to fail, not the first. Most calls that arrive as “the AC quit” are airflow or charge problems that have been building for weeks. Readings take the guessing out of it.
01.1
Charge is measured two ways: by weight and by response. If the factory charge is printed on the unit data plate, we weigh what goes in. If the nameplate is worn or missing, we set the charge by superheat, subcooling and the manufacturer’s charge table for the unit’s size — never by “feel.”
01.2
Superheat is how many degrees the refrigerant is above its saturation temperature as it leaves the evaporator coil. Low superheat means refrigerant is leaving too cool — the coil may be starved or flooded. High superheat means the coil cannot absorb enough heat, usually starved charge or a restricted metering device.
Typical residential window: roughly 5–15 °F
01.3
Subcooling is how many degrees the liquid refrigerant is below its saturation temperature at the outlet of the outdoor condenser coil. High subcooling points to a condenser-side restriction — a plugged filter drier, a dirty coil or a kinked line set. Low or negative subcooling points to overcharge or a failed expansion device.
Typical residential window: roughly 8–12 °F
01.4
A restrictive return path, a clogged filter or undersized flex duct starves the evaporator. We measure the temperature split across the coil and check for the pressure drop that a manometer cannot see from the return grille.
02 AC Repair
The compressor never gets the command, or it never gets the start. Both failures look identical from inside the house: warm air, no cooling, fan running.
A contactor is the switch that connects the low-voltage thermostat call to the compressor. Pitoned pitting on the contacts creates high resistance, so the compressor gets low voltage and starts in a starved condition. Signs: humming that stops when it kicks, or a compressor that trips on overload.
A dual run capacitor sits in the outdoor unit and gives the compressor the phase shift it needs to start. A bulging, leaking or oil-flecked can loses capacitance. The motor hums, draws heavy locked-rotor amps, and the start relay or contactor tips over.
Watch for: hum with no fan spin · scorch on start · failed overload
A dirty or iced evaporator coil does not transfer heat, so the refrigerant temperature drops and the moisture in the air freezes on the coil face. Water that does not drain refreezes into a block and can flood the cabinet.
03 AC Installation
Installation errors are quiet for a season and then expensive. Sizing, coil match, line set length and the return path matter more than the badge on the box.
An indoor coil with an outdoor unit one or two sizes over the load will short-cycle: it runs cold, dumps a slab of condensate, then struggles to pull the house back up. The match has to work in both directions.

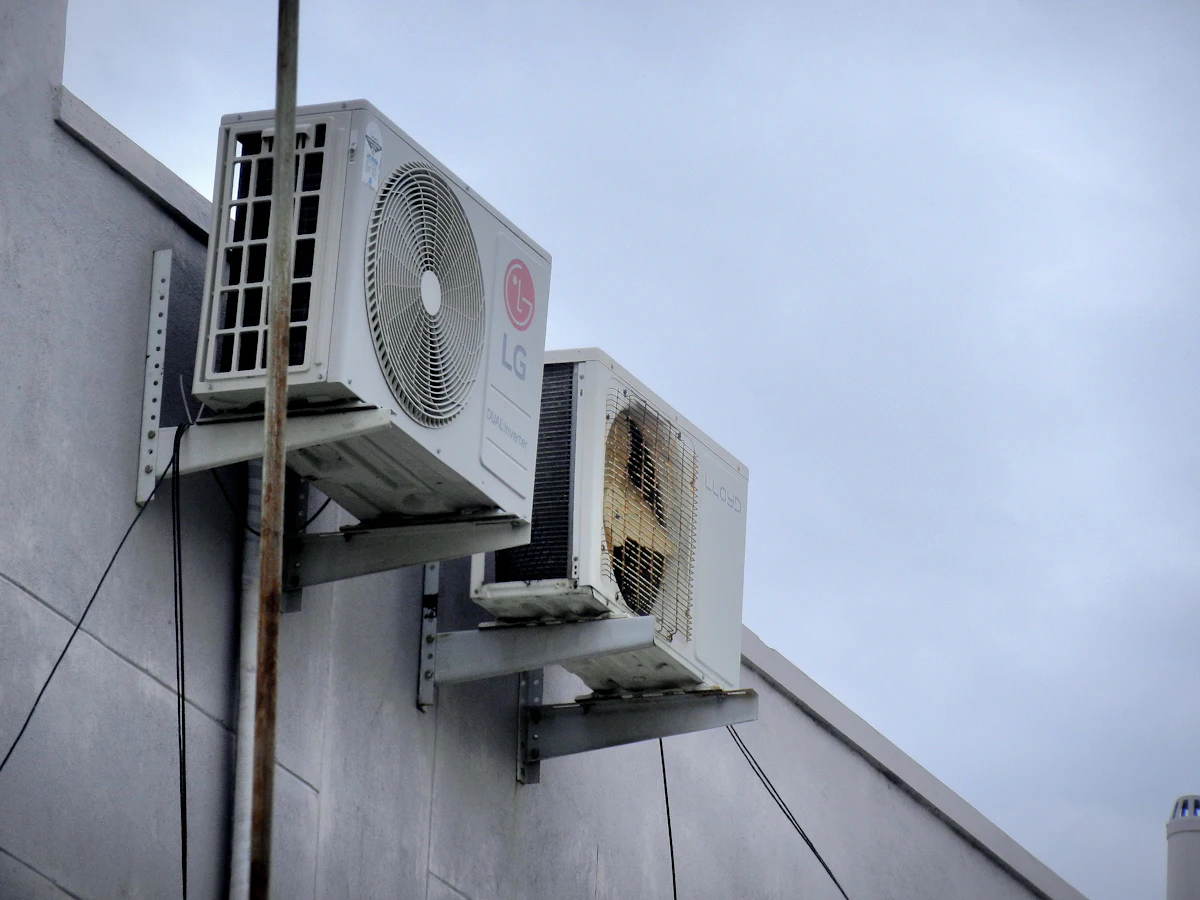

A level pad, a line set routed without kinks, and the manufacturer’s clearances on all four sides of the unit. Cramming a condenser into a closet kills airflow, drives head pressure up and shortens the compressor’s life.
A new outdoor unit does not fix a collapsed return duct. Supply and return are designed together; undersizing supply raises static pressure and cuts the airflow the coil needs.
After brazing, the system is held under a deep vacuum with the service valves closed until it holds, moisture and non-condensable gas are pulled out of the lines, the lines are flushed with nitrogen, and only then is the vacuum broken and the system charged to the data plate.
04 Refrigeration / Cooling Components
The compressor and condenser coil are the visible half. Everything else decides whether the charge ever reaches them intact.
Refrigerant
Pressure and oil compatibility differ by refrigerant, and R-22 is a phased-out legacy gas. Any recovery or installation has to match the refrigerant already in the system.
Metering
The expansion device drops refrigerant pressure to the evaporator. A failed TXV superheats the coil and starves it of charge even when the system is fully charged.
Dryer
Installed in the liquid line to trap moisture and acid. Once it is packed, subcooling climbs and the unit loses capacity. It is a sealed, non-repairable item.
Line set
Kinks, a crushed insulation section or a shallow-trapped oil slug will block flow or starve the compressor. Flushing with nitrogen after a repair is not optional.
Condensate
A cracked pan, a blocked drain line or a pan that is not sloped sends water into the cabinet or the ceiling. The float switch is the backstop that shuts the system down.
Sensors
Thermostats, pressure switches, freeze stats and low-voltage wires all carry the signals between the control board and the field devices. A chafed wire looks exactly like a bad compressor.
Diagnostic note
A system low on charge is almost always low on charge for a reason. Before replacing refrigerant we find out why it left — a pinhole in a copper line, a cracked solder joint at the service valve, a missing service port cap left open over a season, or an abandoned line set.
05 Heat Pumps
A heat pump does not make heat — it moves it. Capacity and efficiency come from the temperature difference between indoor air and outdoor air, which means the outdoor unit needs to be clear of obstructions and the indoor coil needs to be dry.
Reverse cycle
Reversing valve sends refrigerant the other way so the same equipment heats and cools. A reversing valve that hangs mid-stroke gives you weak heating, weak cooling, or both at once.
Defrost cycle
On a cold morning the outdoor coil ices over. The board reverses to melt it, and the system stops making heat while it does. Normal defrost is a few minutes; a coil that never clears means low airflow, low charge or a defrost sensor stuck closed.
Condenser clearance
Manufacturer clearance exists for a reason. Coil blockage from leaves, a mesh screen packed solid or a unit boxed in by landscaping drives head pressure up, and a heat pump that runs hot will shut down on high pressure.
Auxiliary heat
Below the balance point the backup electric strips carry the load. A stuck heat pump compressor means the strips run constantly, which shows up on the bill long before anyone thinks to check the outdoor unit.
06 Maintenance
Ice on the indoor coil is the end of a chain, not the cause. It forms whenever the coil drops below the dew point of the air moving through it. Four conditions get it there.
C-01
A clogged filter, a closed register or a collapsed return duct cuts the volume of air over the coil. Less heat in, colder tube walls, moisture freezes on the fins.
C-02
A dust-loaded evaporator holds a blanket of insulation between the air and the refrigerant. The coil never reaches temp, so it ices even at normal charge.
C-03
Starved the coil cannot absorb its full load. Pressure drops, superheat runs high, and the coldest part of the coil can go sub-freezing.
C-04
A plugged TXV or a clogged filter drier feeds the coil too little refrigerant. Flow starves, and the coil runs cold enough to ice at the inlet.
08 Contact
The more you can tell us about the behaviour, the more readings we can take on the first visit. Indoor or outdoor unit running? Fan spinning or stopped? Any water on the floor or ceiling? Warm air on the first vent but cool further into the house points to an airflow problem, not a charge problem.
